Характеристики
| LED / Lamp Size | SR1.65 |
| LED Colour | Yellow |
| Typ Luminous Intensity | 1.4lm |
| Viewing Angle | 90° |
| Forward Current | 70mA |
| Voltage, Vf Max | 2.67V |
| Operating Temperature Range | -40°C to +110°C |
| External Length / Height | 7.62mm |
| Half Angle | 45° |
| Height Above Board | 2.85mm |
| Lead Length | 4.95mm |
| Lead Spacing | 5.08mm |
| Max Luminous Flux | 3.0lm |
| Max Operating Temperature | 110°C |
| Max Storage Temperature | 110°C |
| Min Luminous Flux | 1.5lm |
| Min Storage Temperature | -55°C |
| Min Temperature Operating | -40°C |
| Power Dissipation | 187mW |
| Typ Luminous Flux | 2.1lm |
| Voltage, Reverse Protection | 10V |
| Voltage, Vf Min | 1.83V |
| Voltage, Vf Typ | 2.2V |
| Wavelength, Max | 611nm |
| Wavelength, Min | 598nm |
| Wavelength, Peak | 610nm |
| Wavelength, Typ | 605nm |
| Width, External | 7.62mm |

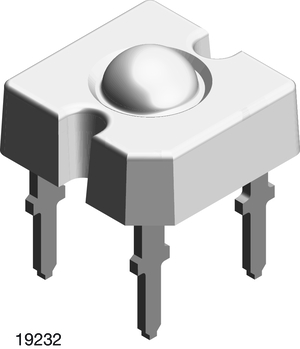

TLWY7900VishayLEDs
