Характеристики
| Topology | Buck (Step Down) |
| Input Voltage Min | 5.5V |
| Input Voltage Max | 36V |
| No. of Outputs | 1Outputs |
| DC / DC Converter IC Case | SO PowerPAD |
| No. of Pins | 8Pins |
| Output Current | 3A |
| Output Voltage Min | 1.22V |
| Output Voltage Max | 31V |
| Switching Frequency | 500kHz |
| Operating Temperature Max | 125°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
| MSL | MSL 1 - Unlimited |
| SVHC | No SVHC (27-Jun-2018) |
| Accuracy % | 1.5% |
| Adjustable Output Voltage Max | 31V |
| Adjustable Output Voltage Min | 1.22V |
| Base Number | 5430 |
| Frequency | 500kHz |
| Operating Temperature Min | -40°C |
| Operating Temperature Range | -40°C to +125°C |
| Output Current Max | 4A |
| Output Voltage | 5V |
| Primary Input Voltage | 36V |
| Supply Voltage Min | 5.5V |
| Switch Output Current Isw Max | 4A |
| Termination Type | Surface Mount Device |
| Voltage Regulator Type | DC / DC Converter |

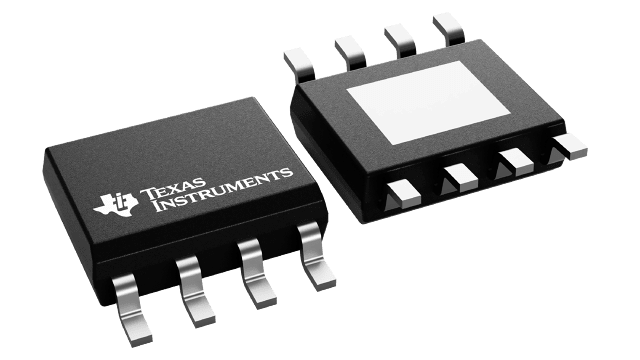

TPS5430DDAG4Texas InstrumentsVoltage Regulators - Switching
