Характеристики
| Track Resistance | 5kohm |
| No. of Turns | 1 |
| Resistance Tolerance | ± 20% |
| Series | TS53 |
| Temperature Coefficient | ± 100ppm/°C |
| Power Rating | 250mW |
| Potentiometer Mounting | SMD |
| SVHC | No SVHC (15-Dec-2010) |
| Adjustment Type | Top |
| Contact Resistance Variation + | 1% |
| End Resistance | 5ohm |
| External Depth | 5mm |
| External Length / Height | 2.7mm |
| External Width | 5mm |
| IP/NEMA Rating | IP67 |
| Operating Temperature Max | 155°C |
| Operating Temperature Min | -55°C |
| Operating Temperature Range | -55°C to +155°C |
| Package / Case | SMD |
| Proof Voltage | 1000V |
| Reel Quantity | 500 |
| Resistance | 5kohm |
| Resistor Case Style | SMD |
| Resistor Element Material | Variable Rotary Cermet |
| Rotation Mechanical Angle | 270° |
| Tape Width | 12mm |
| Temperature Coeff. + | 100ppm/°C |
| Temperature Coeff. - | 100ppm/°C |
| Terminal Type | Surface Mount (SMD, SMT) |
| Termination Type | SMD |
| Tolerance + | 20% |
| Tolerance - | 20% |
| Track Taper | Linear |
| Voltage Rating | 200V |
| Voltage Rating VAC | 200V |
| Voltage Rating VDC | 200V |

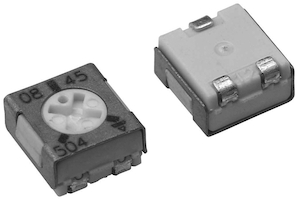

TS53YL502MR10VishayVariable Resistors and Potentiometers
