Характеристики
| Driver Configuration | Low Side |
| Peak Output Current | 9A |
| Supply Voltage Min | 4V |
| Supply Voltage Max | 15V |
| Driver Case Style | DIP |
| No. of Pins | 8Pins |
| Input Delay | 25ns |
| Output Delay | 35ns |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | - |
| SVHC | No SVHC (27-Jun-2018) |
| Base Number | 37322 |
| Device Type | MOSFET Driver |
| IC Generic Number | 37322 |
| IC Temperature Range | Commercial |
| Module Configuration | Low Side |
| No. of Outputs | 1Outputs |
| Operating Temperature Range | 0°C to +70°C |
| Output Resistance | 15ohm |
| Output Voltage | 150mV |
| Output Voltage Max | 300mV |
| Power Dissipation Pd | 350mW |
| Supply Voltage Range | 4V to 15V |
| Termination Type | Through Hole |

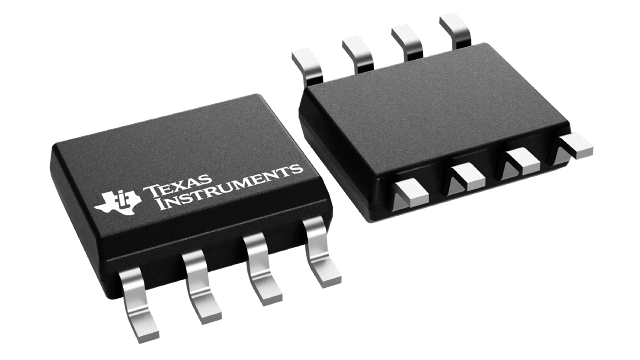

UCC37322PTexas InstrumentsGate Drivers
