Характеристики
| Diode Type | Fast Recovery |
| Diode Configuration | Single |
| Repetitive Reverse Voltage Vrrm Max | 600V |
| Forward Current If(AV) | 1A |
| Forward Voltage VF Max | 1.7V |
| Reverse Recovery Time trr Max | 75ns |
| Forward Surge Current Ifsm Max | 30A |
| Operating Temperature Range | -55°C to +150°C |
| Diode Case Style | DO-214AC |
| No. of Pins | 2 |
| SVHC | No SVHC (20-Jun-2011) |
| Alternate Case Style | DO-214AC |
| Current Ifsm | 30A |
| External Depth | 2.79mm |
| External Length / Height | 2.29mm |
| External Width | 4.5mm |
| Forward Current If Max | 1A |
| Forward Voltage | 1.7V |
| Junction Temperature Tj Max | 150°C |

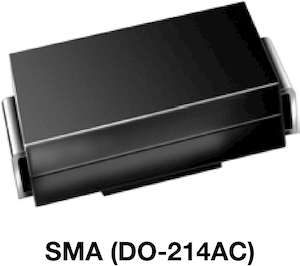

| Package / Case | SMA |
| Reverse Recovery Time trr Typ | 75ns |
| Termination Type | SMD |
US1J-E3/5ATVishayRectifier Diodes
