Характеристики
| Diode Type | Fast Recovery |
| Voltage, Vrrm | 1000V |
| Current, If AV | 1A |
| Current, Ifsm | 30A |
| Time, trr Typ | 75ns |
| Voltage, Vf Max | 1.7V |
| Temperature, Tj Max | 150°C |
| Termination Type | SMD |
| Case Style | SMA |
| No. of Pins | 2 |
| Alternate Case Style | DO-214AC |
| Current, Ifs Max | 30A |
| External Depth | 2.79mm |
| External Length / Height | 2.29mm |
| Forward Current | 1A |
| Forward Voltage | 1.7V |
| Quantity, Reel | 1800 |
| Time, trr Max | 75ns |
| Width, External | 4.5mm |
| Width, Tape | 12mm |

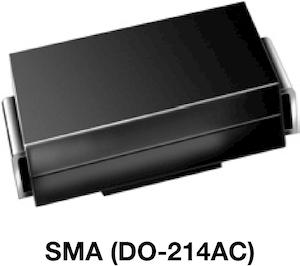

US1M-E3/61TVishayRectifier Diodes
