Характеристики
| No. of Phases | Three |
| Repetitive Reverse Voltage Vrrm Max | 800V |
| Forward Current If(AV) | 25A |
| Forward Voltage VF Max | 1.26V |
| Diode Mounting Type | Surface Mount |
| Operating Temperature Range | -55°C to +150°C |
| Bridge Rectifier Case Style | D-63 |
| No. of Pins | 5 |
| SVHC | No SVHC (19-Dec-2011) |
| Body Height Max | 10mm |
| Case Temperature Tc | 60°C |
| Current If @ Vf | 40A |
| Current Ir Max | 2mA |
| Diode Type | Bridge Rectifier, Three Phase |
| External Depth | 28.5mm |
| External Length / Height | 21mm |
| External Width | 28.5mm |
| Fixing Hole Diameter | 5.2mm |
| Forward Surge Current Ifsm Max | 360A |
| Isolation Voltage | 2.7kV |
| Junction Temperature Tj @ Irrm | 150°C |
| Junction Temperature Tj Max | 150°C |
| Junction Temperature Tj Min | -40°C |
| Junction to Case Thermal Resistance A | 1.42°C/W |
| Output Current Max | 25A |
| Package / Case | D-63 |
| Surge Current Frequency | 50Hz |
| Terminal Type | 6.35mm x 0.8mm |
| Termination Type | Screw |
| Weight | 20g |

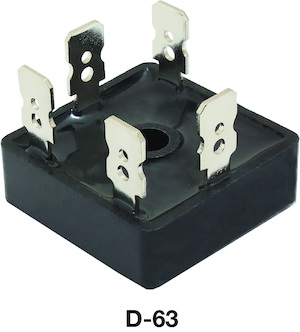

VS-26MT80VishayBridge Rectifier Diodes
