Характеристики
| No. of Phases | Single |
| Repetitive Reverse Voltage Vrrm Max | 100V |
| Forward Current If(AV) | 35A |
| Forward Voltage VF Max | 1.14V |
| Diode Mounting Type | Surface Mount |
| Operating Temperature Range | -55°C to +150°C |
| Bridge Rectifier Case Style | D-34A |
| No. of Pins | 4 |
| SVHC | No SVHC (20-Jun-2011) |
| Ambient Temperature Ta | 60°C |
| Body Height Max | 10.5mm |
| Case Temperature Tc | 60°C |
| Current Ir Max | 2mA |
| Diode Type | Bridge rectifier, single phase |
| External Depth | 28.5mm |
| External Length / Height | 20.3mm |
| External Width | 28.5mm |
| Fixing Hole Diameter | 5.0mm |
| Forward Surge Current Ifsm Max | 475A |
| Junction Temperature Tj @ Irrm | 150°C |
| Junction Temperature Tj Max | 150°C |
| Junction Temperature Tj Min | -40°C |
| No. of Phases | 1 |
| Output Current Max | 35A |
| Package / Case | D-34A |
| RMS Input Voltage | 70V |
| Surge Current Frequency | 50Hz |
| Terminal Type | 6.35mm x 0.8mm |
| Termination Type | Screw |

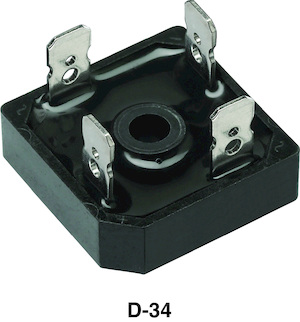

VS-36MB10AVishayBridge Rectifier Diodes
