Характеристики
| Topology | Shunt, Adjustable |
| Reference Voltage | 2.5V |
| Reference Voltage Tolerance | 25mV |
| Voltage Reference Case Style | SOT-23 |
| No. of Pins | 3 |
| Operating Temperature Range | -40°C to +125°C |
| Accuracy % | 1% |
| Cathode Current Ik Max | 100mA |
| Cathode Voltage Vka Max | 20V |
| Output Current Max | 100mA |
| Output Voltage Max | 20V |
| Package / Case | SOT-23 |
| Reference Voltage & Age Tolerance | 1% |
| Supply Voltage Max | 20V |
| Termination Type | SMD |
| Voltage Regulator Type | Adjustable |

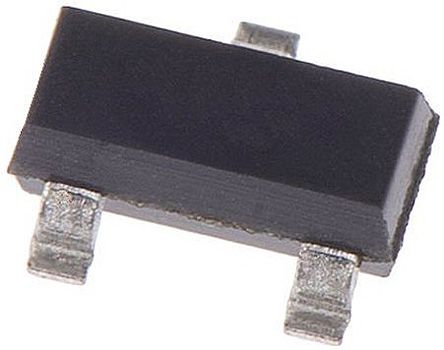

ZTL431AFTADiodes Inc.Voltage References
