Характеристики
| Transistor Polarity | N Channel |
| Continuous Drain Current Id | 4.6A |
| Drain Source Voltage Vds | 30V |
| On Resistance Rds(on) | 47mohm |
| Rds(on) Test Voltage Vgs | 10V |
| Power Dissipation Pd | 1.4W |
| Operating Temperature Range | -55°C to +150°C |
| Transistor Case Style | SOT-23 |
| No. of Pins | 3 |
| SVHC | No SVHC (20-Jun-2011) |
| Current Id Max | 4.6A |
| On State Resistance @ Vgs = 4.5V | 65mohm |
| On State resistance @ Vgs = 10V | 47mohm |
| Package / Case | SOT-23 |
| Power Dissipation Pd | 1.4W |
| Termination Type | SMD |
| Voltage Vds Typ | 30V |
| Voltage Vgs Max | 20V |
| Voltage Vgs Rds on Measurement | 10V |
| Voltage Vgs th Min | 1V |

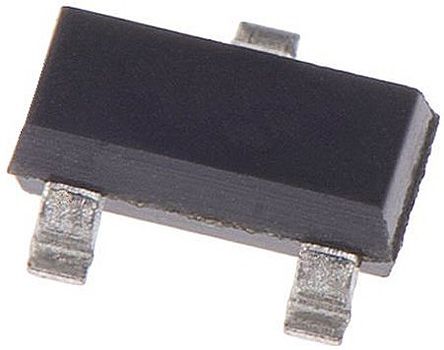

ZXMN3F30FHTADiodes Inc.MOSFETs
